FEATURES
PDU Series according to GB1002/16A standard, 3 meter power cable and power socket assembly according to GB1002/16A standard; All PDU Series products design by modular mode, Meet standard rack and cabinet’s dimension 482.6mm (19”).
SPECIFICATIONS
PDU Specification and Order Code
Example: PC5L 081……I S F D……U
P: (PDU Series)
C: Standard
C: China Standard
U: United States Standard
G: German Standard
I: Italian Standard
Y: Italian Universal Standard
B: UK Standard
F: French Standard
E: IEC Standard (IEC320C19)
W: Universal Standard
1: Type
L: Power Cable Direction
L: Left end
R: Right end
U: Upper end (Top)
B: Bottom end
08: Socket Port
06: 6 way
08: 8 way
1……I S F D……U: Option Function
1: Standard product (Indicator)
I: Indicator
S: Dual-on/off Switch
F: Fuse
D: Digital Current Meter
C: Power overload protection
R: Electric Leakage Protection
U: Surge protection
M: Multi-functioned switch
CB: Small Circuit Breaker
Dimension: L×W×H=482.6×44.5×62mm
※ Technical Parameter ※
| ◇PDU Standard: GB1002/16A ◇Power Cable Direction: Left or Right ◇Socket Type: GB1002/16A ◇Color: Black or White ◇Capacity: 16A/250VAC ◇UL List: UL94V-0 ◇Protection: Non/Option |
◇Socket Port:8 ◇Installation: Front Normal Install ◇Function: Indicator ◇Power Cable:3Core×1.5m㎡×3Meter ◇Max. Power Loading: 4KW ◇Case material: Aluminum |
Order Code:
PC5L-081 Standard product (Indicator)
PC5L-08I-16A Indicator
PC5L-08S-16A Dual-on/off Switch
PC5L-08C-16A Power Overload Protection
PC5L-08M-16A Multi-functioned Switch
PC5L-08D-16A Digital Current Meter
PC5L-08CB-16A Small Circuit Breaker
PC5L-08F-16A Fuse
PC5L-08U-16A Surge Protection
PC5L-08R-16A Electric Leakage Protection

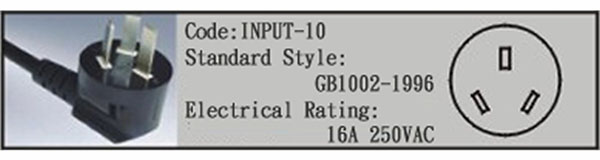

Code: INPUT-10
Standard Style: GB1002-1996
Electrical Rating: 16A 250VAC
Code: OUTPUT-10
Standard Style: GB1002-1996
Electrical Rating: 10A 250VAC
