FEATURES
PDU Series according to IEC320/DIN49440 standard, 3 meter power cable and power socket assembly according to IEC320/DIN49441 standard; All PDU Series products design by modular mode, Meet standard rack and cabinet’s dimension 482.6mm (19”).
SPECIFICATIONS
PDU Specification and Order Code
Example: PGE1L 081……I S F D……U
P: (PDU Series)
C: Standard
C: China Standard
U: United States Standard
G: German Standard
I: Italian Standard
Y: Italian Universal Standard
B: UK Standard
F: French Standard
E: IEC Standard (IEC320C19)
W: Universal Standard
1: Type
L: Power Cable Direction
L: Left end
R: Right end
U: Upper end (Top)
B: Bottom end
08: Socket Port
06: 6 way
08: 8 way
1……I S F D……U: Option Function
1: Standard product (Indicator)
I: Indicator
S: Dual-on/off Switch
F: Fuse
D: Digital Current Meter
C: Power overload protection
R: Electric Leakage Protection
U: Surge protection
M: Multi-functioned switch
CB: Small Circuit Breaker
※ Technical Parameter ※
| ◇PDU Standard:IEC320/DIN49440 ◇Power Cable Direction: Left or Right ◇Socket Type: DIN49441 ◇Color: Black or White ◇Capacity: 16A/250VAC ◇UL List: UL94V-0 ◇Protection: Non/Option |
◇Socket Port: 8 ◇Installation: Front Normal Install ◇Function: Indicator ◇Power Cable: 3Core×1.5m㎡×3Meter ◇Max. Power Loading: 4KW ◇Case material:Aluminum |
Order Code:
PGE1L-081-IEC320 Standard product (Indicator)
PGE1L-08I-IEC320 Indicator
PGE1L-08S-IEC320 Dual-on/off Switch
PGE1L-08C-IEC320 Power Overload Protection
PGE1L-08M-IEC320 Multi-functioned Switch
PGE1L-08D-IEC320 Digital Current Meter
PGE1L-08CB-IEC320 Small Circuit Breaker
PGE1L-08F-IEC320 Fuse
PGE1L-08U-IEC320 Surge Protection
PGE1L-08R-IEC320 Electric Leakage Protection

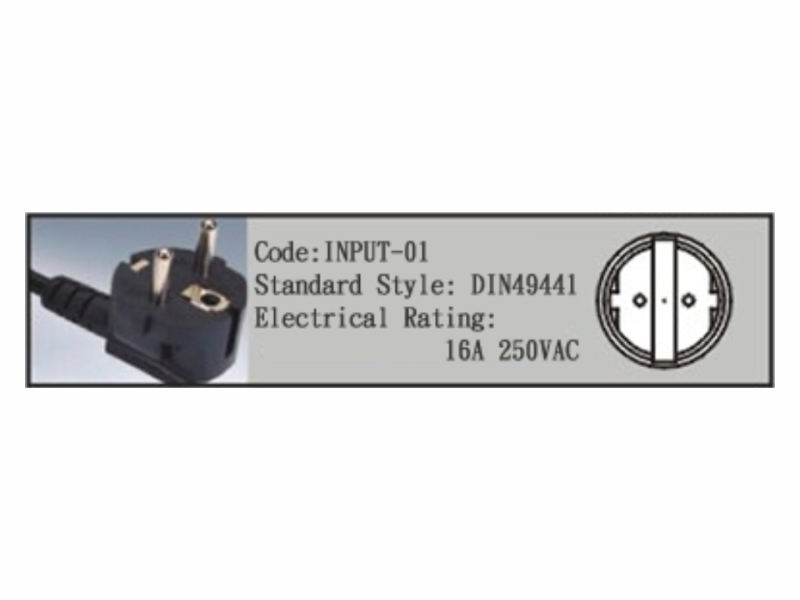

Code: INPUT-01
Standard Style: DIN49441
Electrical Rating: 16A 250VAC
Code: OUTPUT-02
Standard Style: DIN49440
Electrical Rating: 16A 250VAC
Code: OUTPUT-05
Standard Style: IEC60320 C13
Electrical Rating: 10A 250VAC
