Combo Vending Machine Combo Vending Machine
model：JZG-D720-8C(5HP)

Combo Vending Machine

Size: H:1927 mm, W:1005 mm, D:892 mm
Capacity: 240-600 pcs
It Can also sell instant noodles, biscuits, various snacks, refrigerated canned, boxed, bottled drinks.



JZG-D720-8C(5HP)
 Size  H:1927mm , W:1005mm , D:892mm
 Payment System  Bill, Coin, Coin Dispenser(MDB Protocol)
 Weight  320 kgs
 Temperature  4-25*C(adjustable)
 Selections  60
 Power supply  AC 110V/220-240V, 50/60HZ
 Capacity  240-600 pcs
 Standard interface  MDB/DEX/RS232
 Warranty  1Year
 Power  Normal 60W Refrigerated 458W
 Applications  School bank, office, factory park, subway station, airport, hotel, hospital,
 shopping mail etc.
  • Apply to international MDB standard design, conforming to the international DEX
    standard, and     supporting various international general standard housings.
  • The machine is reserved for expansion and can be combined into a large-capacity vending
    machine at     any time.
  • The size of the merchandise channel capacity can be changed at any time, flexibly adapting to
    different items and sizes.
  • It can sell a variety of snacks and refrigerated canned, bottled, boxed, bagged and other
    beverages at     the same time, with a wide range of products.
  • Narrow frame and large area glass window, LED lighting, luxurious and high-grade, goods can
    be     visible directly.
  • The microcomputer control system has management functions such as intelligent data query,
    statistics, audit, and fault self-diagnosis.
  • The powerful cloud system can check the sales information and operating status of each
    vending     machine through the Internet anytime, anywhere.
  • The whole machine is foamed and molded, 360° environmentally friendly air-conditioning,
    using     R134a refrigerant, which meets the national green environmental protection
    requirements.
  • The internal temperature has a digital display, and the refrigeration temperature can be set by
    yourself.
  • Standard raster delivery inspection system.
  • Leakage protection function. Explosion-proof, dust-proof, waterproof luminous metal keyboard.
  • The brand-new shiny appearance integrated machine, with lighting reminder of coin machine
    withdraw button and the exit.
  • Customizable "spirals", "conveyor belts", and "large-capacity channel modes to facilitate the
    sale of various commodities.
  • Optional touch screen display, which can play videos and pictures in various formats.


According to product packaging size, spiral size can be selected.



Standard Configuration:

1.Up to 6 layers ， per layer in 10 channels.
2.One layer for Instant noodles, one layer for snacks, two layers for bottle drink, two layers for
   caned drink.

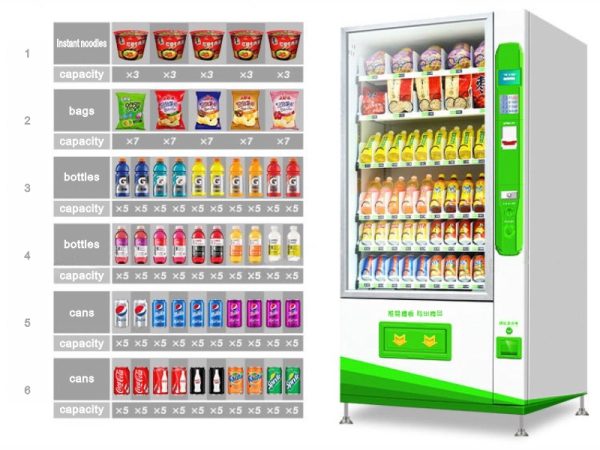

3.Per layer channel capacity as photo show.






The cloud digital intelligent system supports remote management of machine data and working
status.
Cloud platform is free of charge for lifespan.

Sales report statistics  ．  Inventory management  ．  Fault reminder
