Information KIOSK

Information KIOSK Information KIOSK Information KIOSK Information KIOSK Information KIOSK Information KIOSK Information KIOSK Information KIOSK Information KIOSK
model:KIF

Information KIOSK

FEATURES
Information / Self-Service KIOSK-System.

SPECIFICATIONS

Specification :

Order Code
Capacity Width Depth
KIOSK-KIF 1414.44mm(Height) 572.63mm 435mm


Monitor: LCD.
Material: Cold rolled steel ST12 (ST12): SPCC.
Dimension(W*D*H): 572.63*435*1414.44mm.
Thickness: 1.0~3.0mm.

Work environment:
temperature: +5℃ ~ +35℃;humidity:40% ~ 80%.
Network function: four-core telephone orRJ45 network tie-in ( Standard of RJ45).
The surface: color optional.
Basic electrical equipment with cabling and power pack for monitor and sound system (Two speakers)
Sizes: 17-inch.


Touch panel : Mapletouch 5-wire resistive touch screen.

Circuiting Rating: 5V DC, 35mA Surface Hardness: 3H
Light Transmission: Film+Glass>83% Hitting Life Expectancy: Over 35 million
Scoring Life Expectancy: Over 5 million
Contact Bounce: <10ms Operating Temperature: -10℃ ~ +60℃
Resolution: 4096x4096 Storage Temperature: -20℃ ~ +70℃
Linearity: 1.5% ( <1.0% By Request ) Thickness: 3.0mm
Operating Force: 10g~100g

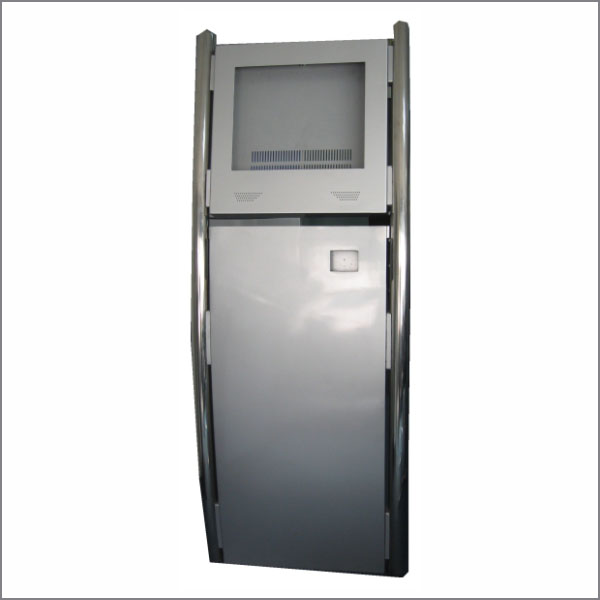

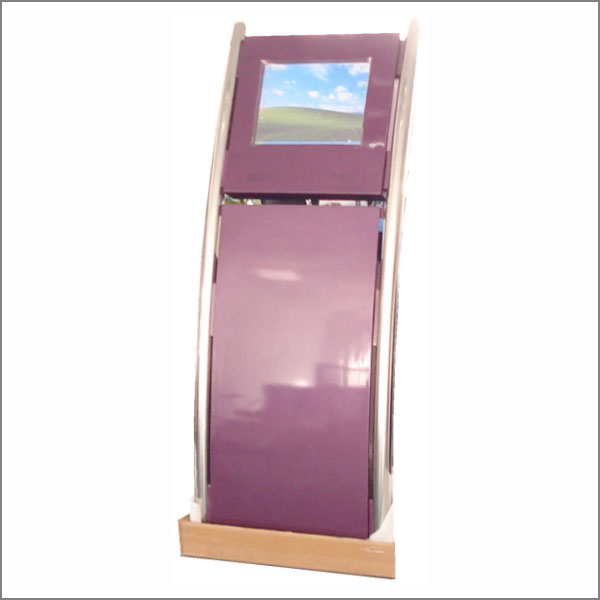

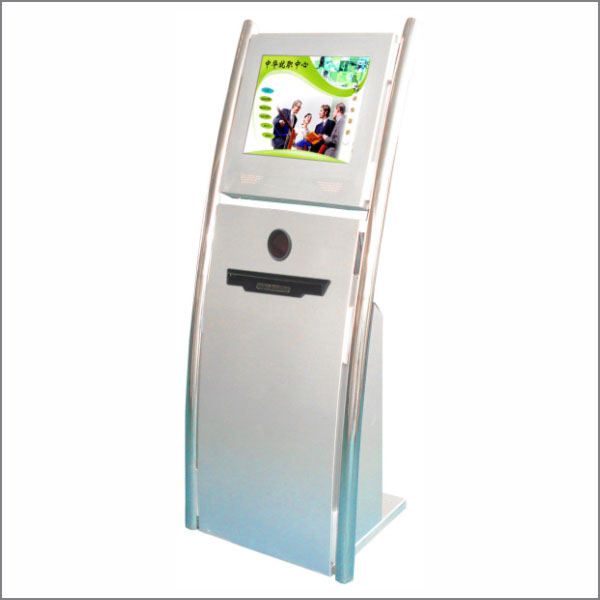

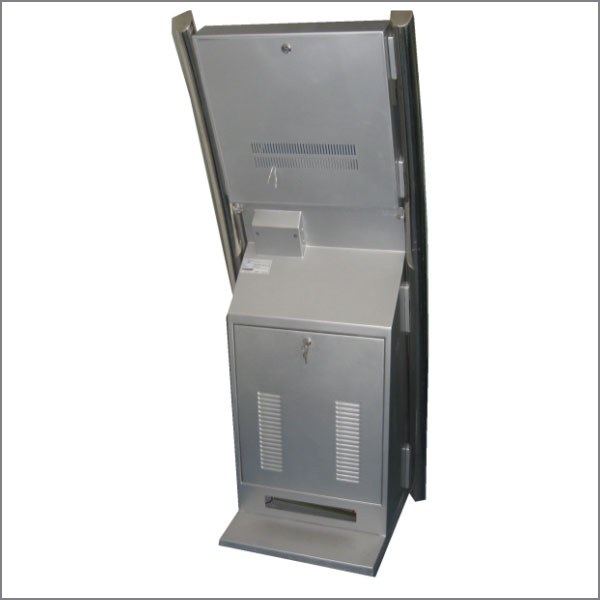

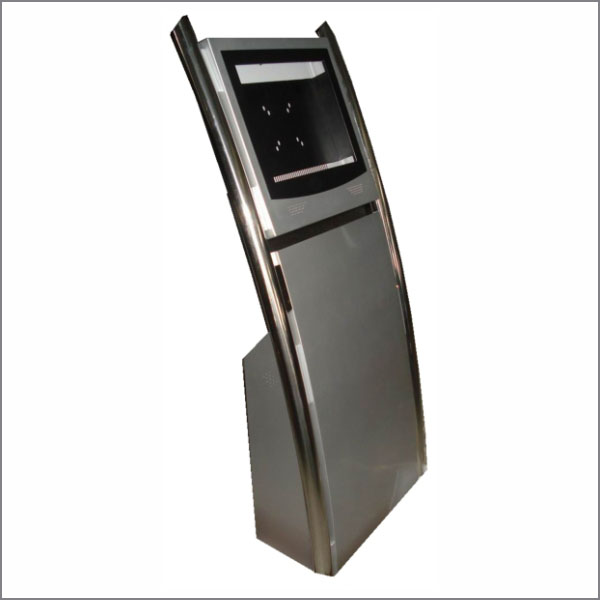

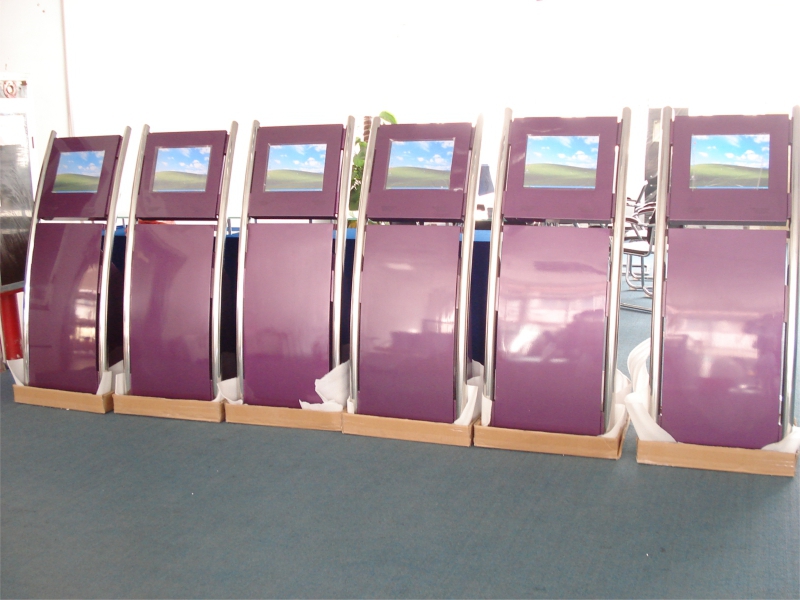

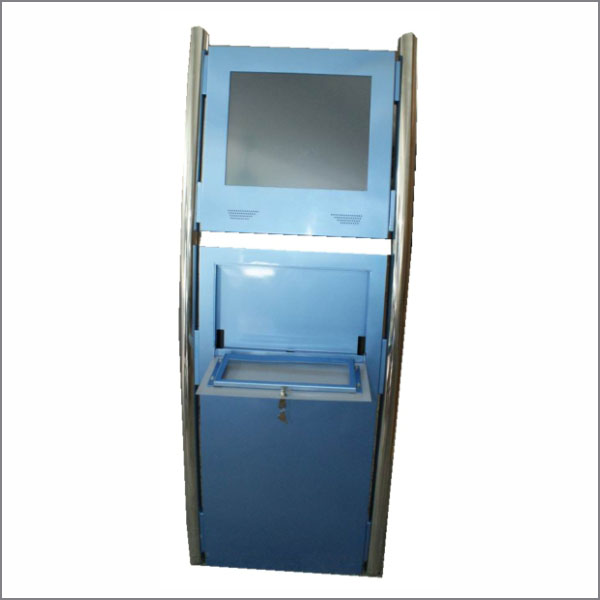

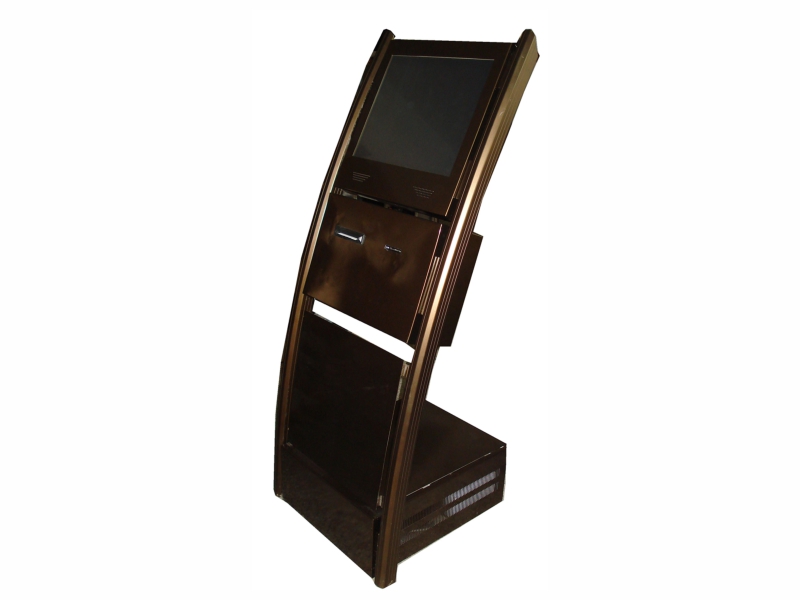

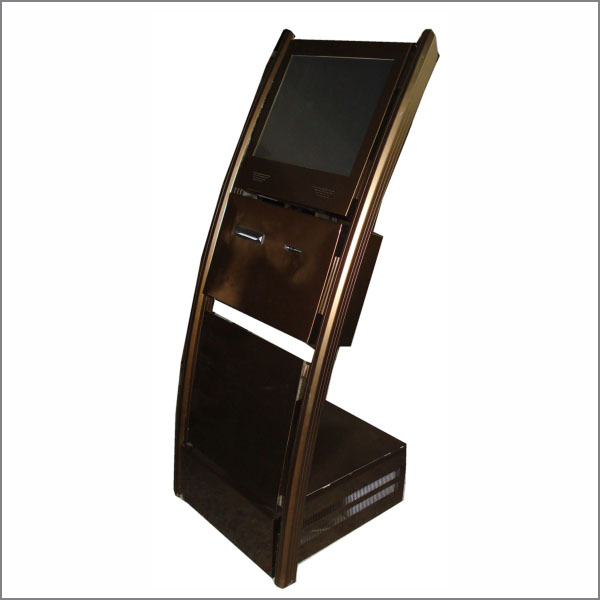

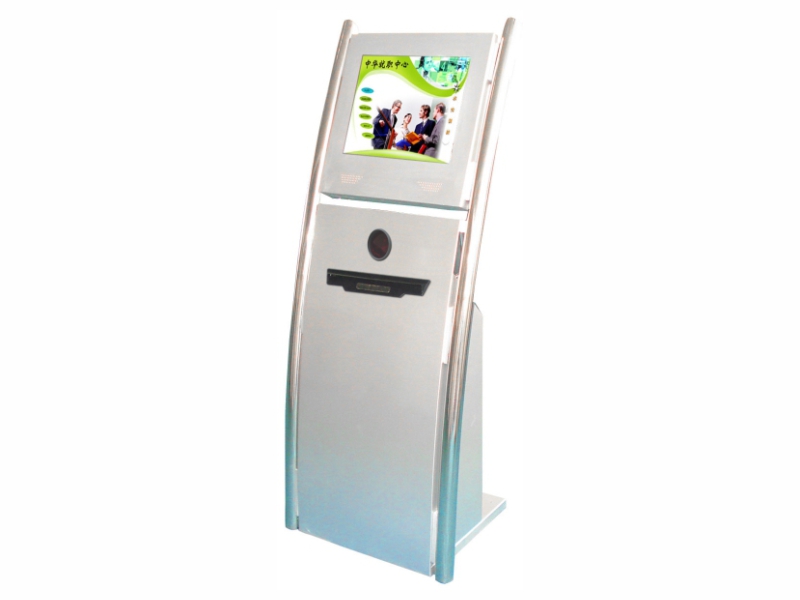

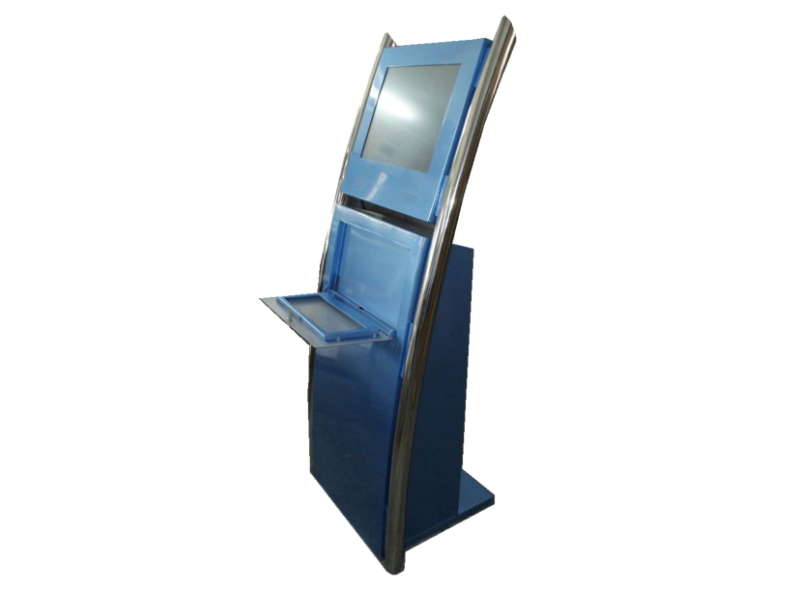

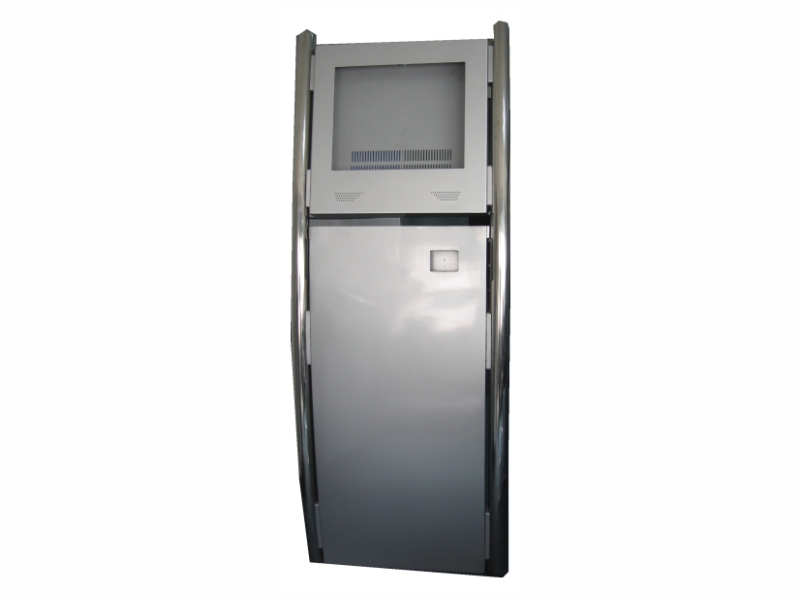

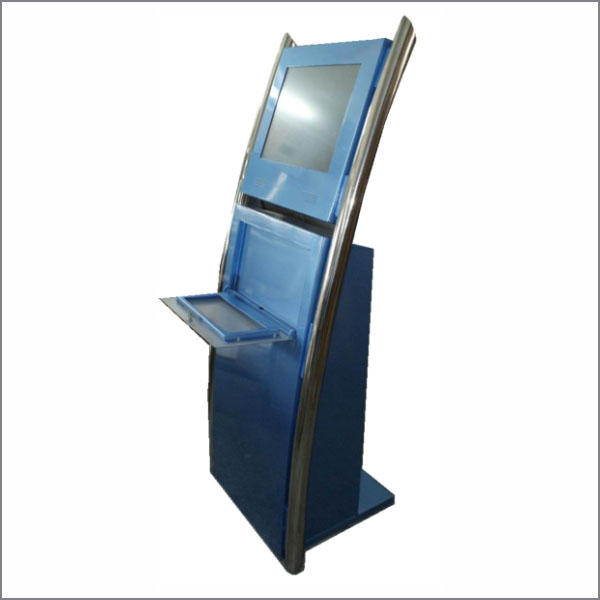

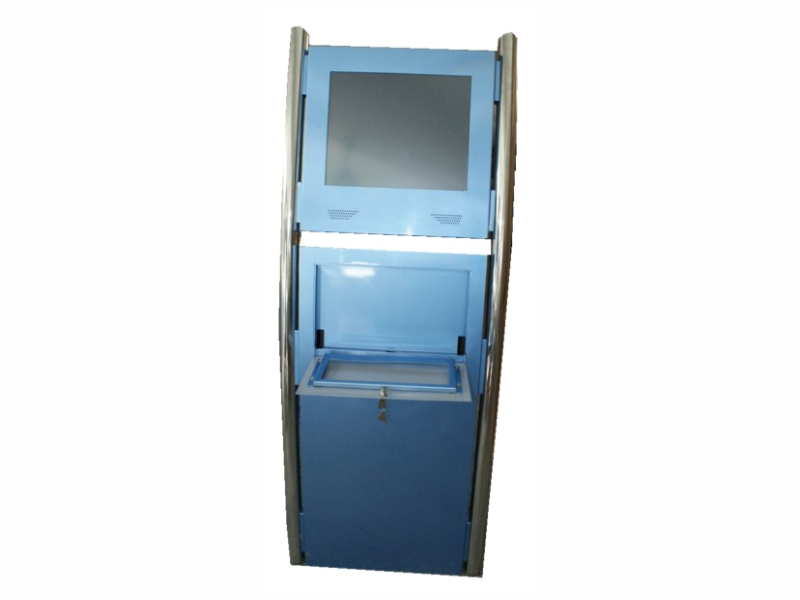

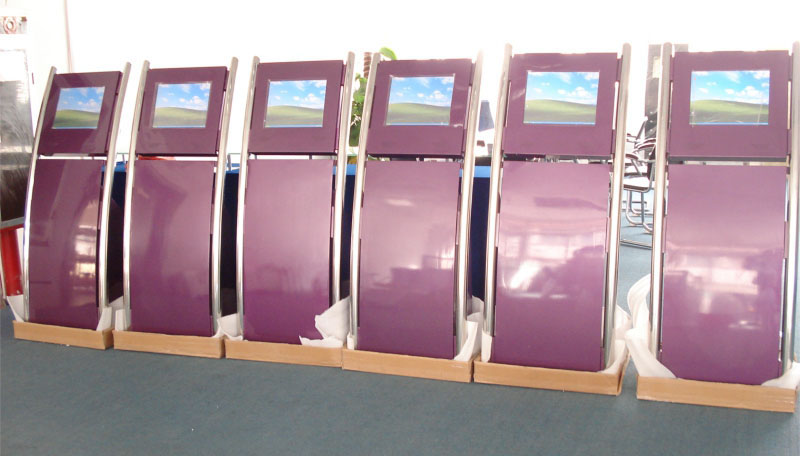

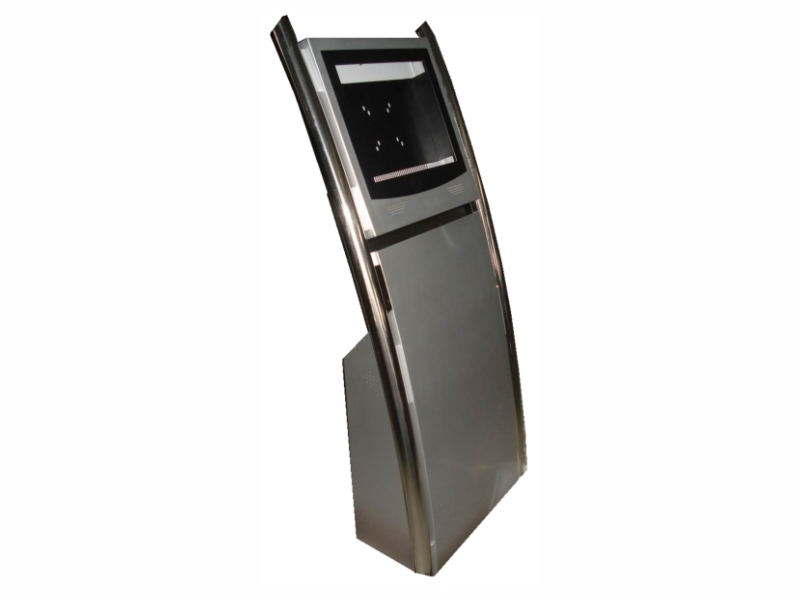

Images :
