Information KIOSK
FEATURES
Information / Self-Service KIOSK-System.
SPECIFICATIONS
Specification :
| Order Code |
Capacity | Width | Depth |
| KIOSK-KIN | 1467.5mm(Height) | 580mm | 400 |
Monitor: LCD.
Material: Cold rolled steel ST12 (ST12): SPCC.
Dimension(W*D*H): 580*400*1467.5mm.
Thickness: 1.0~3.0mm.
Work environment:
temperature: +5℃ ~ +35℃ ; humidity: 40% ~ 80%.
Network function:four-core telephone orRJ45 network tie-in ( Standard of RJ45)
The surface:color optional.
Basic electrical equipment with cabling and power pack for monitor and sound system (Two speakers)
Sizes: 17-inch.
Touch panel : Mapletouch 5-wire resistive touch screen.
| Circuiting Rating: 5V DC, 35mA | Surface Hardness: 3H |
| Light Transmission: Film+Glass>83% | Hitting Life Expectancy: Over 35 million |
| Scoring Life Expectancy: Over 5 million | |
| Contact Bounce: <10ms | Operating Temperature: -10℃ ~ +60℃ |
| Resolution: 4096x4096 | Storage Temperature: -20℃ ~ +70℃ |
| Linearity: 1.5%（<1.0% By Request） | Thickness: 3.0mm |
| Operating Force: 10g~100g |

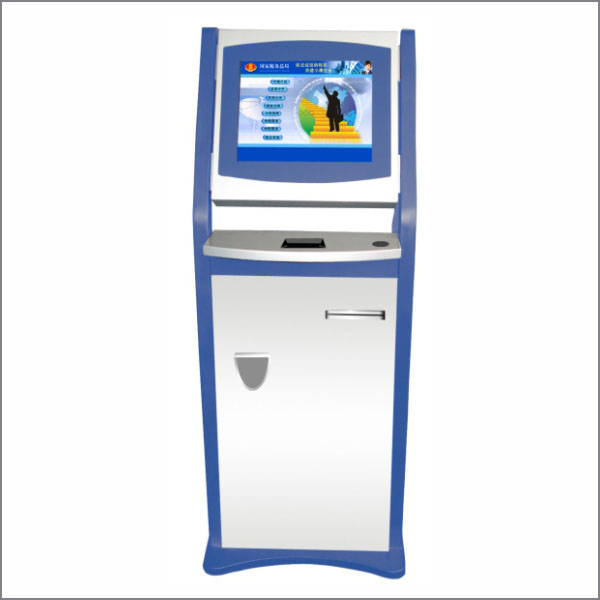

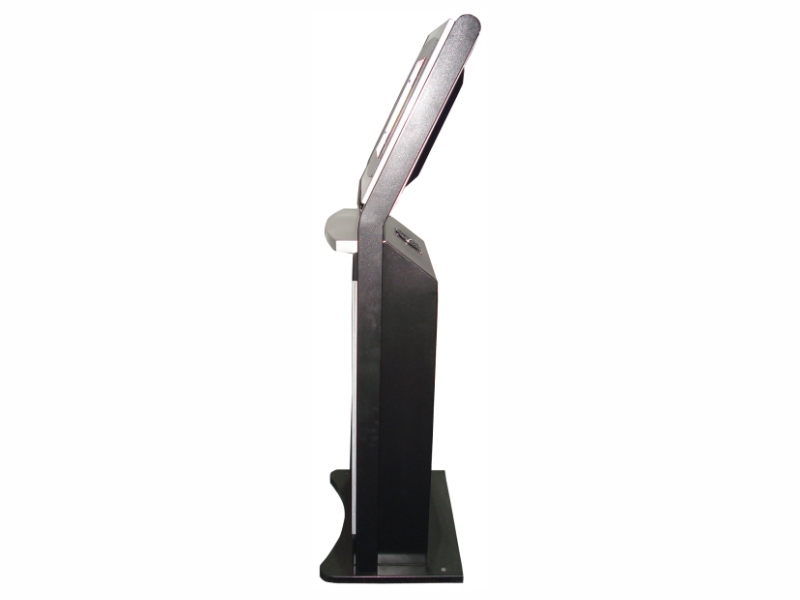

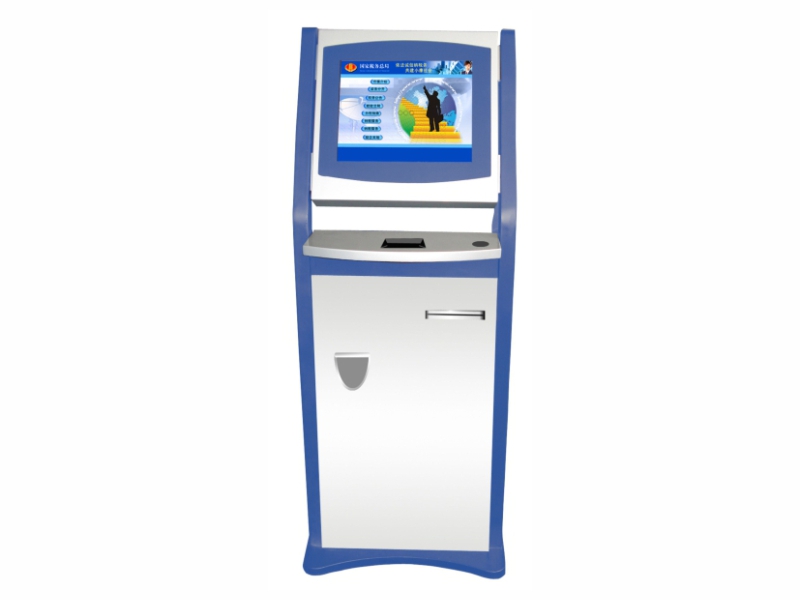

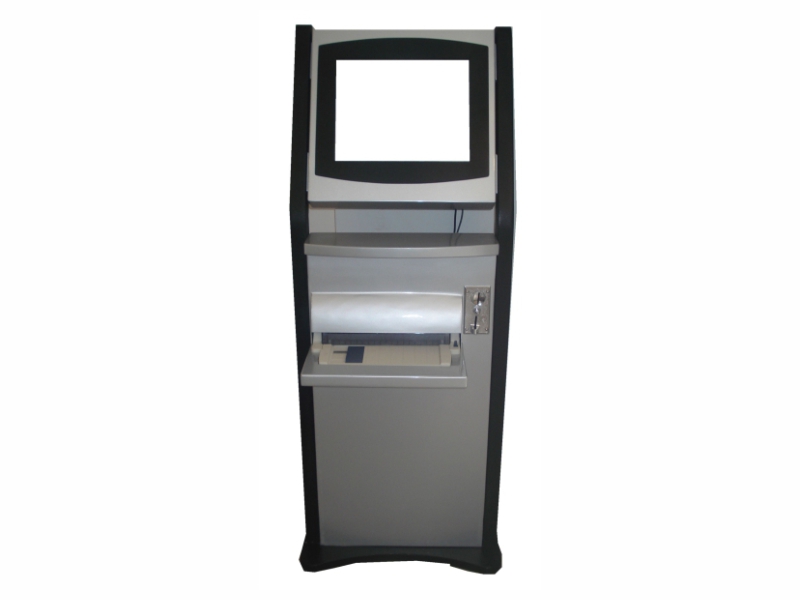

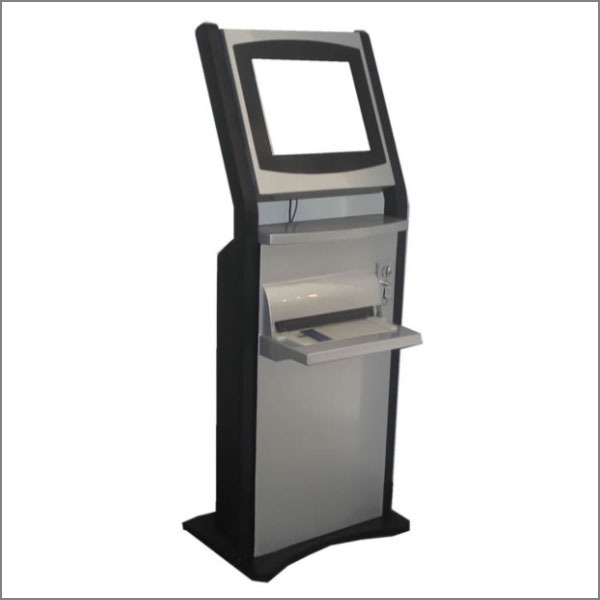

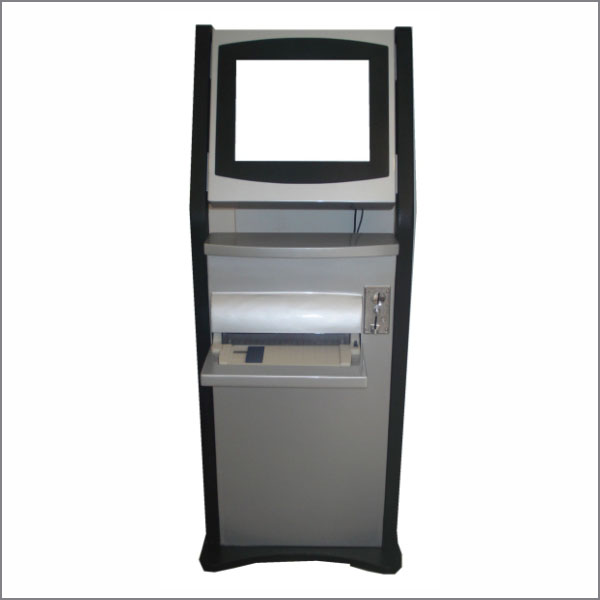

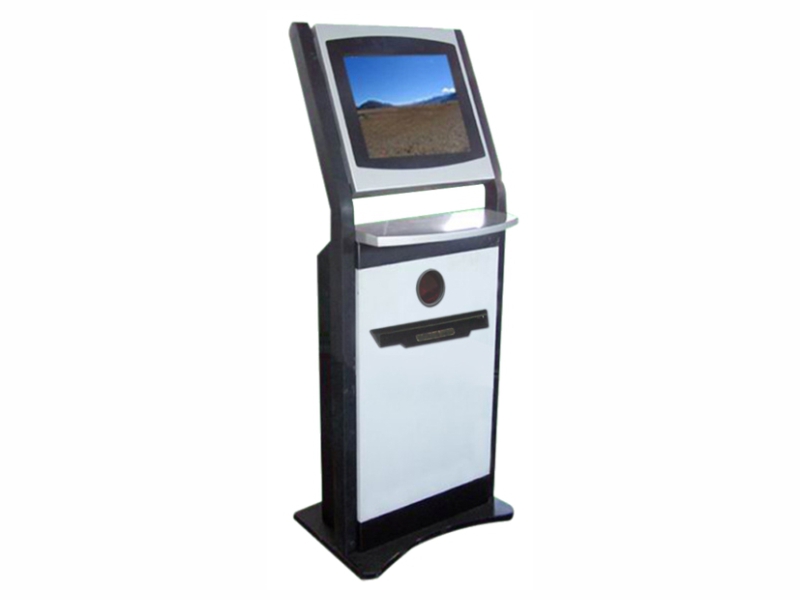

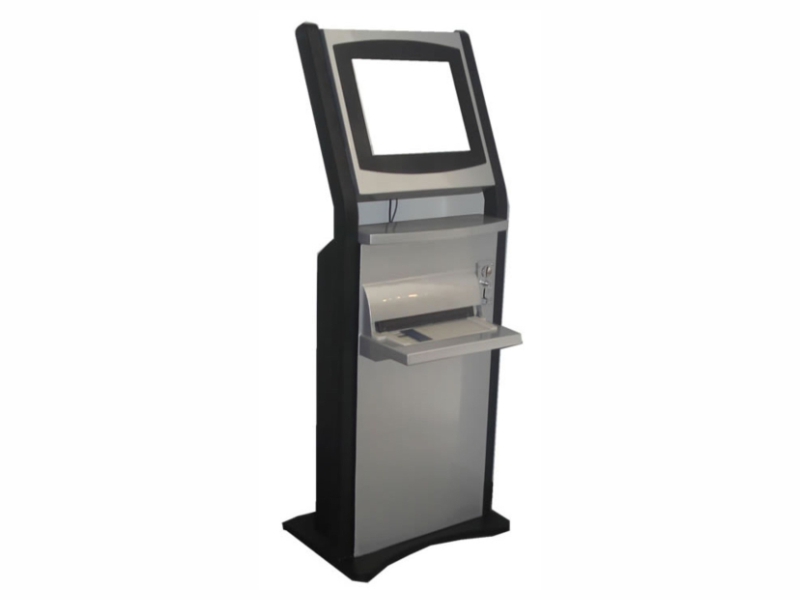

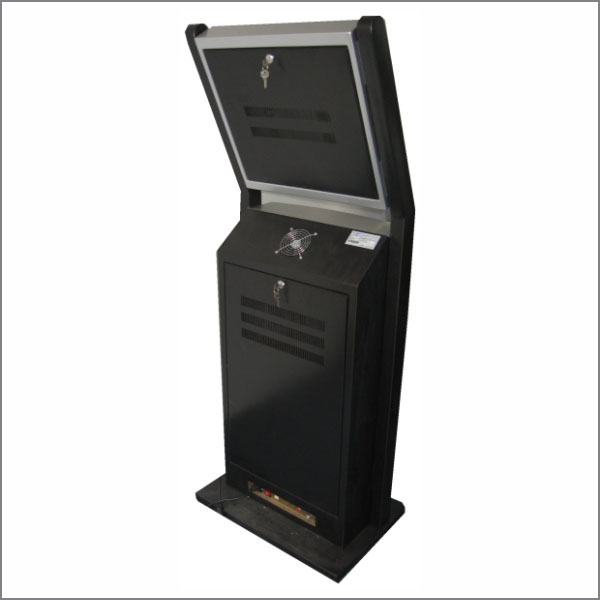

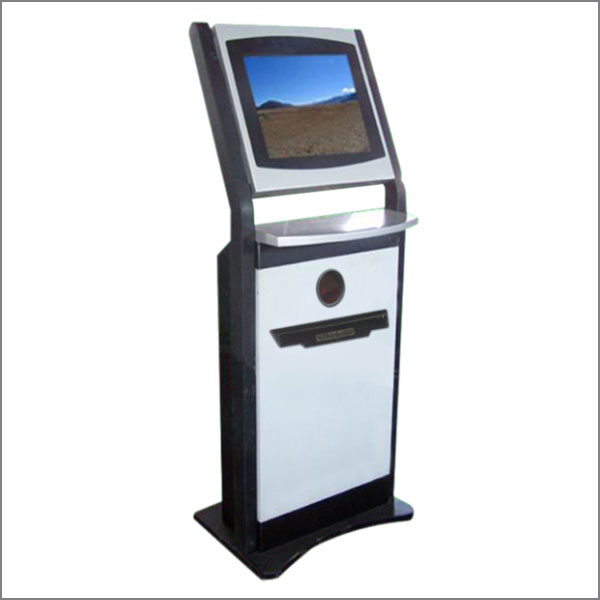

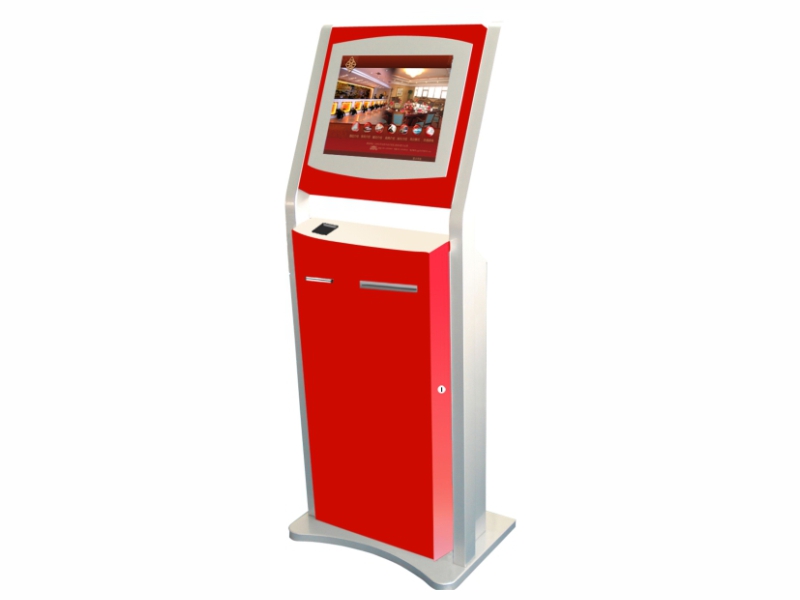

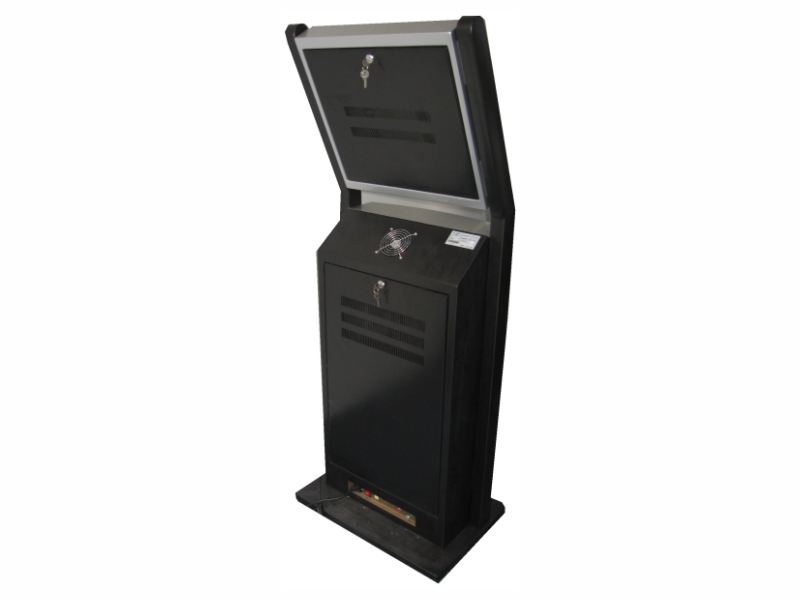

Images :
model：KIN
Information KIOSK
