Information KIOSK
FEATURES
Information / Self-Service KIOSK-System.
SPECIFICATIONS
Specification :
| Order Code |
Capacity | Width | Depth |
| KIOSK-KIK | 1414.44mm(Height) | 572.63mm | 435mm |
Monitor: LCD.
Material: Cold rolled steel ST12 (ST12): SPCC.
Dimension(W*D*H): 572.63*435*1414.44mm.
Thickness: 1.0~3.0mm.
Work environment:
temperature: +5℃ ~ +35℃;humidity: 40% ~ 80%.
Network function:four-core telephone orRJ45 network tie-in ( Standard of RJ45).
The surface: color optional.
Basic electrical equipment with cabling and power pack for monitor and sound system (Two speakers).
Sizes: 17-inch.
Touch panel : Mapletouch 5-wire resistive touch screen.
| Circuiting Rating: 5V DC, 35mA | Surface Hardness: 3H |
| Light Transmission: Film+Glass>83% | Hitting Life Expectancy: Over 35 million |
| Scoring Life Expectancy: Over 5 million | |
| Contact Bounce: <10ms | Operating Temperature: -10℃ ~ +60℃ |
| Resolution: 4096x4096 | Storage Temperature: -20℃ ~ +70℃ |
| Linearity: 1.5% ( <1.0% By Request ) | Thickness: 3.0mm |
| Operating Force: 10g~100g |

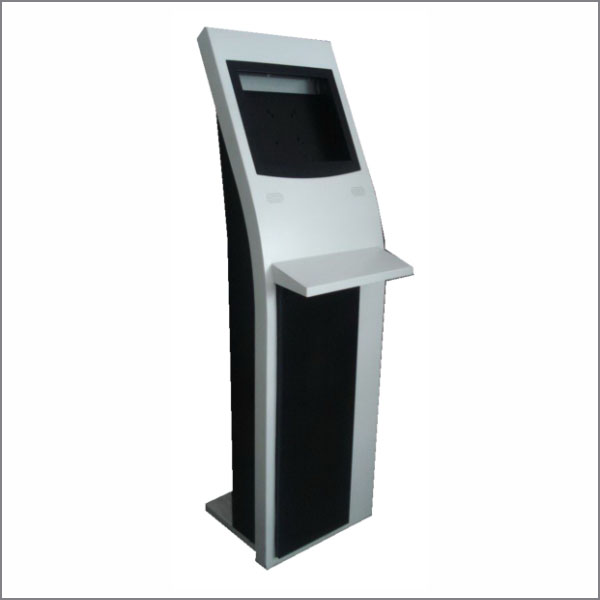

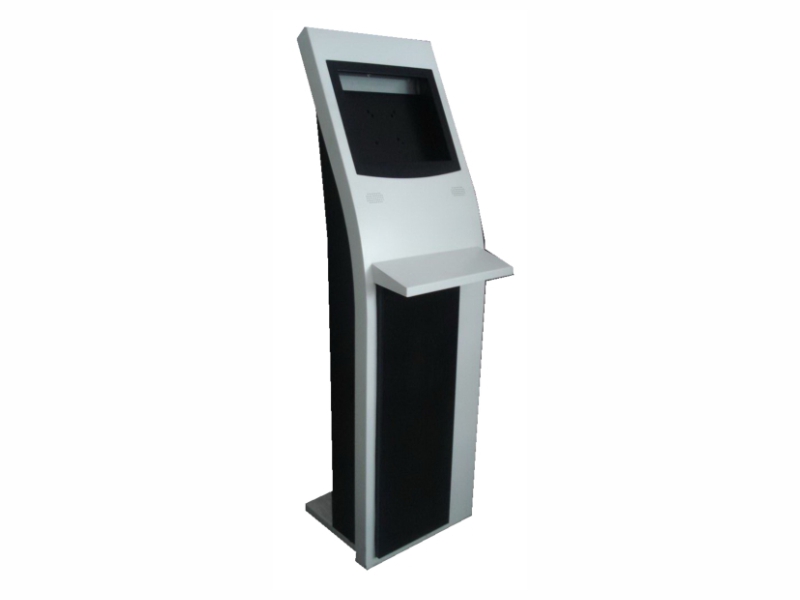

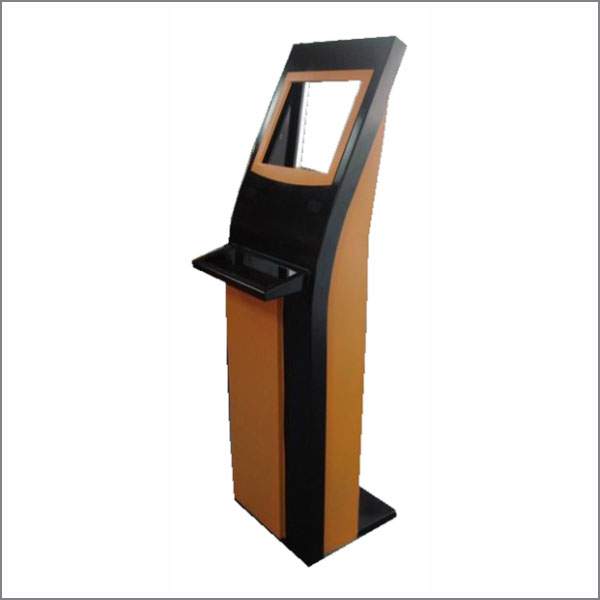

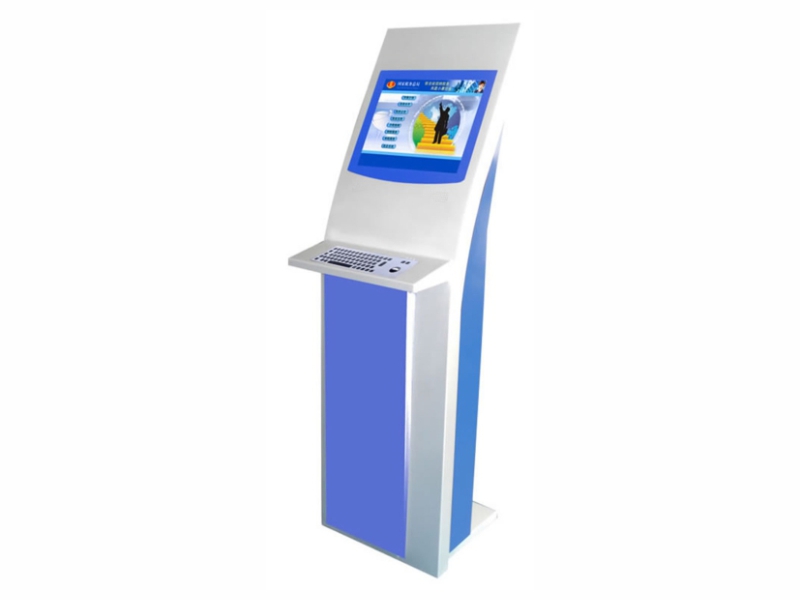

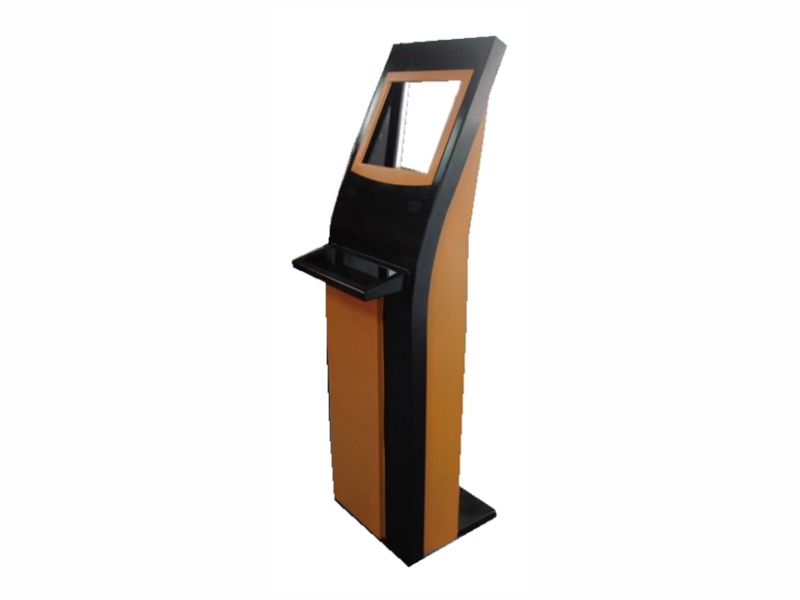

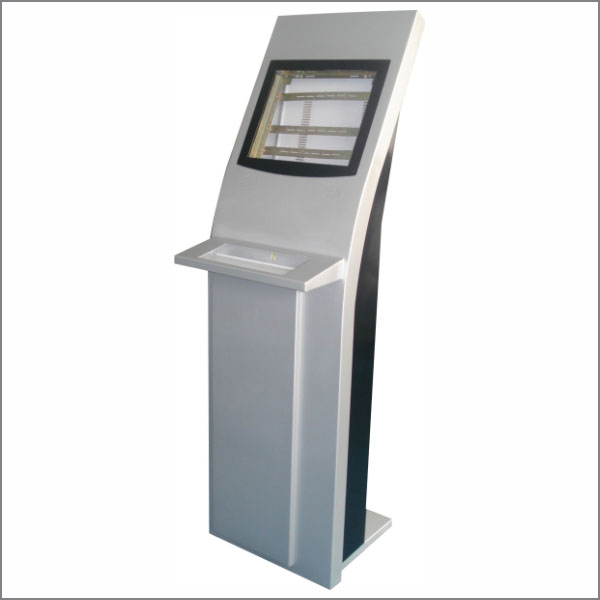

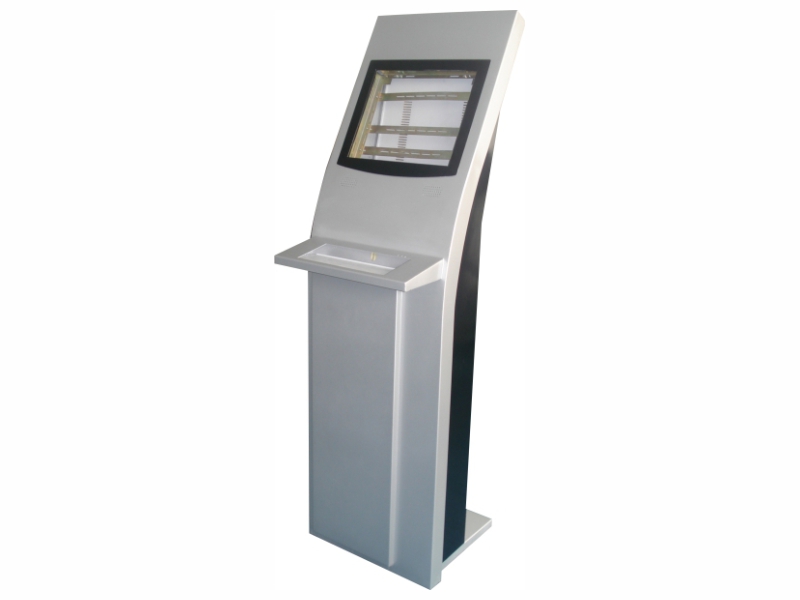

Images :
