model:JSNA

server cabinet

FEATURES
19" Cabinet Rack
● According to ANSI / EIA RS-310D; DIN41491 (PART1); IEC297-2; DIN41494 (PART7); GB/T3047.2-92 and ETSI standard.
● High-density mesh front and rear doors to ventilate and dissipate heat.
● Rear door are double-section and high-density vented splitter door.
● Quick removal or installation of left-right side by side panels to convenient working.
● Interchangeable of door hinge.
● Depth can adjust (unit:25mm),interval and highness of content.
● International quality of console and fitting.

SPECIFICATIONS
JSNA Series Server racks are designed and built to hold computers, servers, monitors,KVM switches, patch panels, network equipment, production bench test equipment and other electronic equipment.
Server racks are used in a variety of industries such as computers/technology, finance/banking, manufacturing, medical and almost any corporate setting that could benefit from vertical storage of equipment. Server racks are an extremely important component of any network.
Quite often server racks are overlooked as just 'another piece of hardware' or categorized under office furniture or shelving. Finding the right server racks can increase the protection, security and ease of management of any network.Server Racks also save valuable floor space and add a professional appearance to your facility.
Server Rack Size/Capacity is one of the most important considerations,not only to make sure that the server rack has the right dimensions (height, width and depth), but also how the server racks will fit into the operating environment. This means checking the usable (inside) dimensions and the overall (outside) dimensions.You'll want to determine if freestanding, desktop or wall-mounted server racks will work best for your equipment and environment, although most server racks that house more than one server are generally freestanding. Check the weight capacity of the server rack to make sure it will work for your anticipated network equipment load.

Material:
SPCC ( Steel - Plate – Cold Rolled - Coil ).
Corner edge: 2.0mm, others 1.2~1.5mm.

Surface Finish:
The Degreasing, Pickling, Phosphoric, Cleaning, Power coating.

Loading:
Maximum Static load of 1300kg.

Specification:

Order Code Capacity  Width Depth
JSNA6647

47U


600 600
JSNA6847 600 800
JSNA6947 600 900
JSNA8647 800 600
JSNA8847 800 800
JSNA8947 800 900
JSNA6642

42U


600 600
JSNA6842 600 800
JSNA6942 600 900
JSNA8642 800 600
JSNA8842 800 800
JSNA8942 800 900
JSNA6637

37U


600 600
JSNA6837 600 800
JSNA6937 600 900
JSNA8637 800 600
JSNA8837 800 800
JSNA8937 800 900


Images:

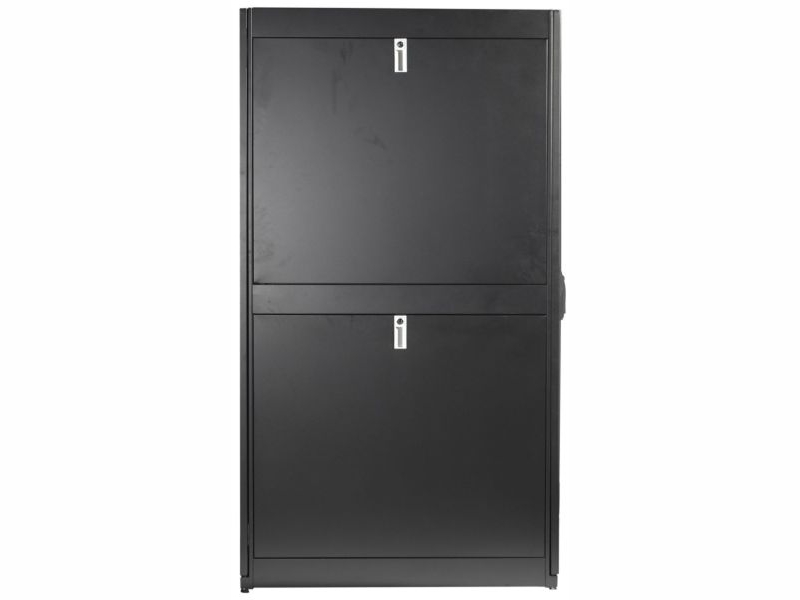

model:JSNA
